150°C Oil-Resistant Neoprene Heat Shrink Tubing
150°C Oil-Resistant Neoprene Heat Shrink Tubing
Application
Oiliant-NM 150°C oil-resistant rubber heat shrink tubing is engineered for the demanding protection of motorsport wire harnesses. Made from irradiation cross-linked, high-performance oil-resistant polymers, it remains flexible and flame-retardant at elevated temperatures.Oiliant-NM excels in shielding cables, harnesses, and connectors from diesel and hydraulic oils, as well as chemical exposure and abrasion. Whether for special vehicles or motorsport wiring, Oiliant-NMensures outstanding durability and reliability, making it the optimal choice for harsh environment cable protection.
Features and Benefits
• Shrink ratio 2:1
• High-performance oil-resistant rubber, remains flexible and flame-retardant at 150°C
• Excellent resistance to aviation, diesel, hydraulic oils, and chemicals
• Superior abrasion resistance, ideal for motorsports harness protection

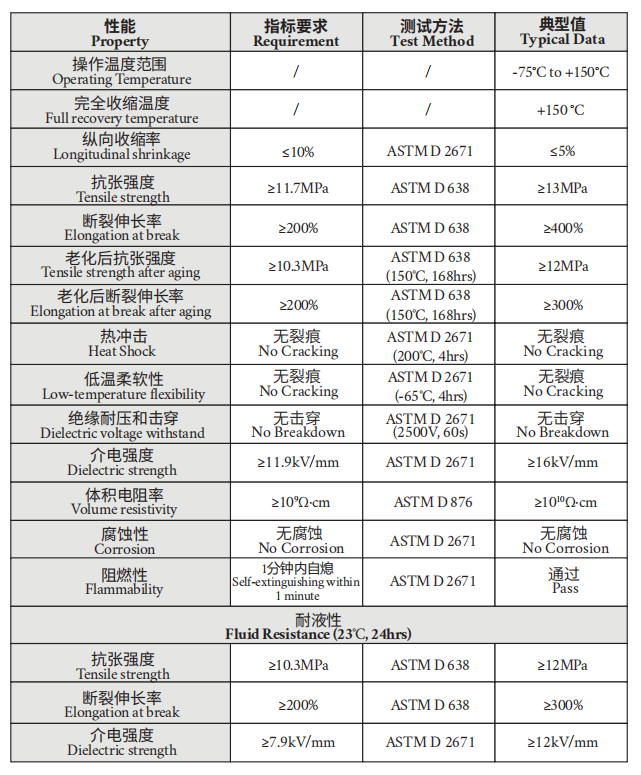

| Property | Requirement | Test Method | Typical Data |
| Operating Temperature | / | / | -75℃ to +150℃ |
| Full recovery temperature | / | / | +150 ℃ |
| Longitudinal shrinkage | ≤10% | ASTM D 2671 | ≤5% |
| Tensile strength | ≥11.7MPa | ASTM D 638 | ≥13MPa |
| Elongation at break | ≥200% | ASTM D 638 | ≥400% |
| Tensile strength after aging | ≥10.3MPa | ASTM D 638 (150℃, 168hrs) | ≥12MPa |
| Elongation at break after aging | ≥200% | ASTM D 638 (150℃, 168hrs) | ≥300% |
| Heat Shock | No Cracking | ASTM D 2671 (200℃, 4hrs) | No Cracking |
| Low-temperature flexibility | No Cracking | ASTM D 2671 (-65℃, 4hrs) | No Cracking |
| Dielectric voltage withstand | No Breakdown | ASTM D 2671 (2500v, 60s) | No Breakdown |
| Dielectric strength | ≥11.9kV/mm | ASTM D 2671 | ≥16kV/mm |
| Volume resistivity | ≥109Ω·cm | ASTM D 876 | ≥1010Ω·cm |
| Corrosion | No Corrosion | ASTM D 2671 | No Corrosion |
| Flammability | Self-extinguishing within 1 minute | ASTM D 2671 | Pass |
| Fluid Resistance (23℃, 24hrs) | |||
| Tensile strength | ≥10.3MPa | ASTM D 638 | ≥12MPa |
| Elongation at break | ≥200% | ASTM D 638 | ≥300% |
| Dielectric strength | ≥7.9kV/mm | ASTM D 2671 | ≥12kV/mm |

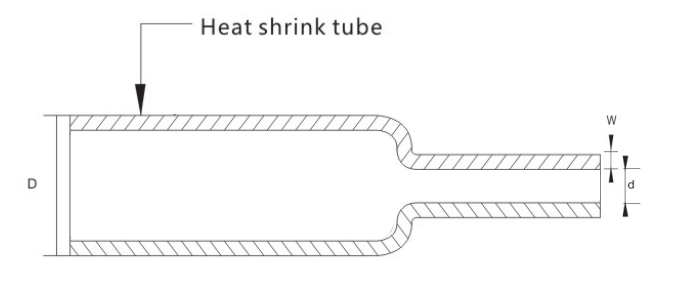

Product Dimension

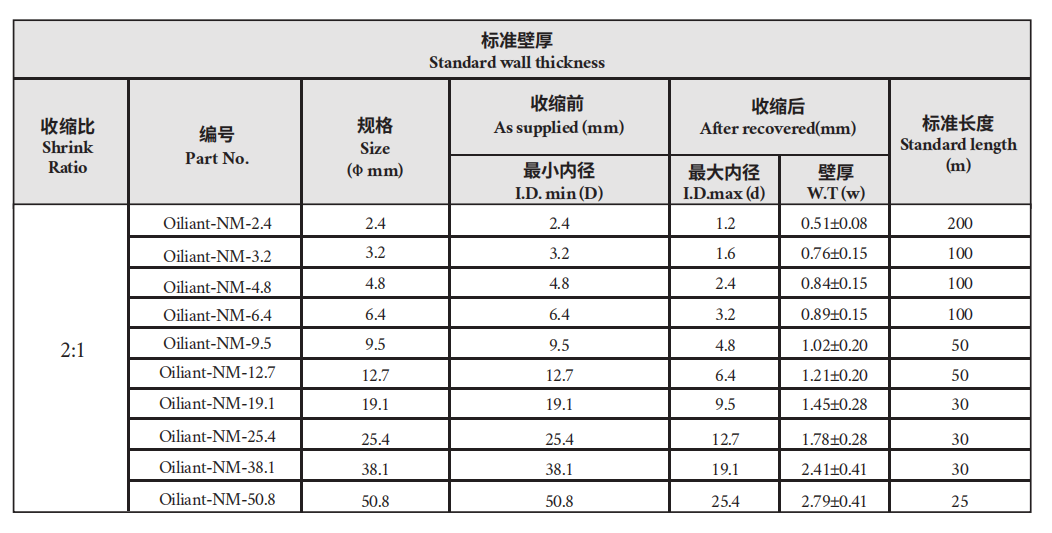

| Table A. Product Dimensions | |||||
| Shrink Ratio | Part No. | Size (Φ mm) | As supplied (mm) | After recovered (mm) | Standard length (m) |
| I.D. min (D) | I.D.max (d) | ||||
| 2:1 | Oiliant-NM-2.4 | 2.4 | 2.4 | 1.2 | 200 |
| Oiliant-NM-3.2 | 3.2 | 3.2 | 1.6 | 100 | |
| Oiliant-NM-4.8 | 4.8 | 4.8 | 2.4 | 100 | |
| Oiliant-NM-6.4 | 6.4 | 6.4 | 3.2 | 100 | |
| Oiliant-NM-9.5 | 9.5 | 9.5 | 4.8 | 50 | |
| Oiliant-NM-12.7 | 12.7 | 12.7 | 6.4 | 50 | |
| Oiliant-NM-19.1 | 19.1 | 19.1 | 9.5 | 30 | |
| Oiliant-NM-25.4 | 25.4 | 25.4 | 12.7 | 30 | |
| Oiliant-NM-38.1 | 38.1 | 38.1 | 19.1 | 30 | |
| Oiliant-NM-50.8 | 50.8 | 50.8 | 25.4 | 25 | |
Custom sizes and colors are available upon request. Technical specifications are subject to change without prior notice. Minimum order quantities (MOQ) may differ from standard packaging quantities.
