225°C Flame-Retardant Printable Tubing
225°C Flame-Retardant Printable Tubing
Application
This product features a high-temperature, radiation cross-linked material with e-beam processing, offering excellent heat resistance up to 225°C, superior chemical resistance, and flame retardancy. Its thin-wall, open-profile tubing ensures secure, durable identification in demanding environments.
Features and Benefits
• Shrink ratio 2:1
• Military grade, up to 225°C, flame-retardant
• Excellent chemical and fluid resistance
• Thin-wall design, secure and clear identification
• Suitable for harsh applications
• Customizable rail-types or roll-types are available.

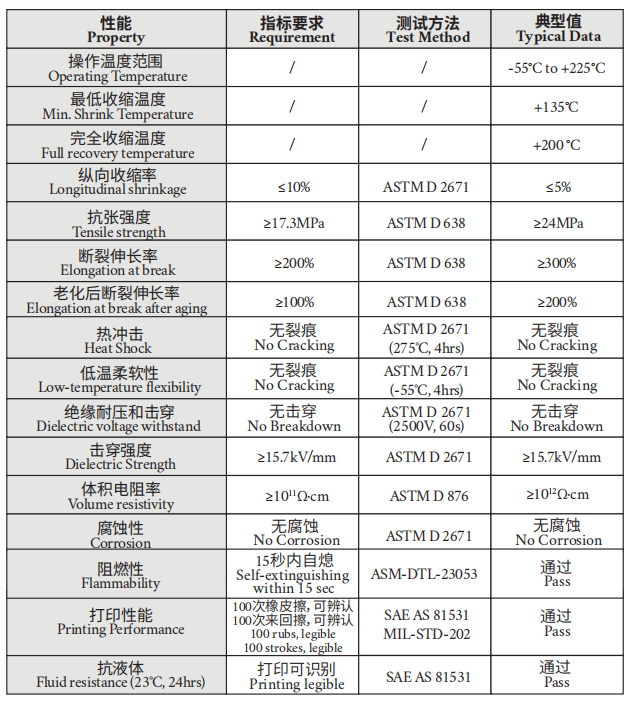

| Property | Requirement | Test Method | Typical Data |
| Operating Temperature | / | / | -55°C to +225°C |
| Min. Shrink Temperature | / | / | +135℃ |
| Full recovery temperature | / | / | +200℃ |
| Longitudinal shrinkage | ≤10% | ASTM D 2671 | ≤5% |
| Tensile strength | ≥17.3MPa | ASTM D 638 | ≥24MPa |
| Elongation at break | ≥200% | ASTM D 638 | ≥300% |
| Elongation at break after aging | ≥100% | ASTM D 638 | ≥200% |
| Heat Shock | No Cracking | ASTM D 2671 (275℃, 4hrs) | No Cracking |
| Low-temperature flexibility | No Cracking | ASTM D 2671 (-55℃, 4hrs) | No Cracking |
| Dielectric voltage withstand | No Breakdown | ASTM D 2671 (2500v, 60s) | No Breakdown |
| Dielectric Strength | ≥15.7 KV/mm | ASTM D 2671 | ≥15.7 KV/mm |
| volume resistivity | ≥1011Ω·cm | ASTM D 876 | ≥1012Ω·cm |
| Corrosion | No Corrosion | ASTM D 2671 | No Corrosion |
| Flammability | Self-extinguishing within 15 sec | ASM-DTL-23053 | Pass |
| Printing Performance | 100 rubs, legible；100 strokes, legible | SAE AS81531 MIL-STD-202 | Pass |
| Fluid resistance (23℃, 24hrs) | Printing legible | SAE AS81531 | Pass |
Color
White, Yellow, Purple
Product Dimension

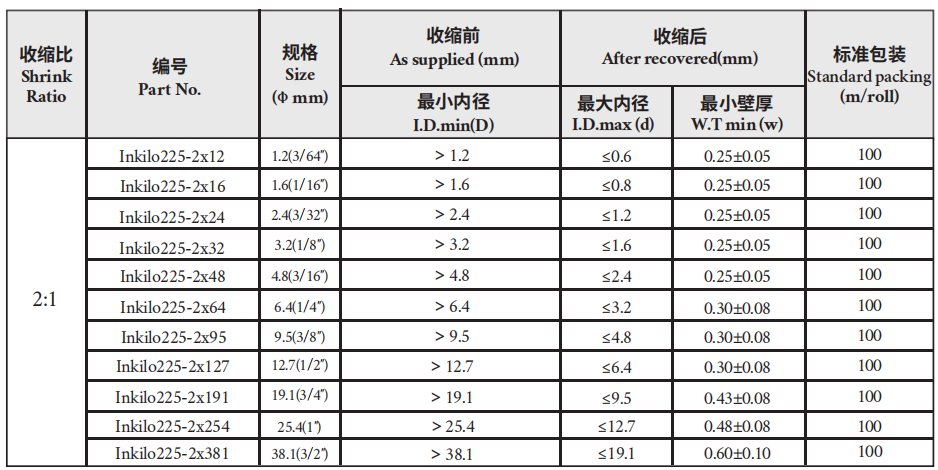

| Table A. Product Dimensions | |||||

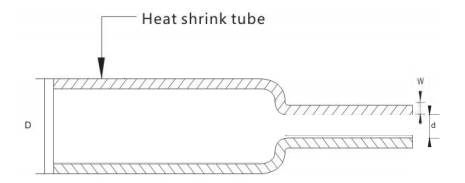

| Shrink Ratio | Part No. | Size (Φ mm) | As supplied (mm) | After recovered (mm) | Standard packing (m/roll) |
| I.D (D) | I.D (d) | ||||
| 2:1 | Inkilo225-2x12 | 1.2(3/64") | >1.2 | ≤0.6 | 100 |
| Inkilo225-2x16 | 1.6(1/16") | >1.6 | ≤0.8 | 100 | |
| Inkilo225-2x24 | 2.4(3/32") | >2.4 | ≤1.2 | 100 | |
| Inkilo225-2x32 | 3.2(1/8") | >3.2 | ≤1.6 | 100 | |
| Inkilo225-2x48 | 4.8(3/16") | >4.8 | ≤2.4 | 100 | |
| Inkilo225-2x64 | 6.4(1/4") | >6.4 | ≤3.2 | 100 | |
| Inkilo225-2x95 | 9.5(3/8") | >9.5 | ≤4.8 | 100 | |
| Inkilo225-2x127 | 12.7(1/2") | >12.7 | ≤6.4 | 100 | |
| Inkilo225-2x191 | 19.1(3/4") | >19.1 | ≤9.5 | 100 | |
| Inkilo225-2x254 | 25.4(1") | >25.4 | ≤12.7 | 100 | |
| Inkilo225-2x381 | 38.1(3/2") | >38.1 | ≤19.1 | 100 | |
Available in both roll-type and rail-type options, with special sizes and color customization upon request. Technical specifications are subject to change without prior notice. Minimum order quantities (MOQ) may differ from standard packaging quantities.
