橙色电动汽车用单壁热缩管

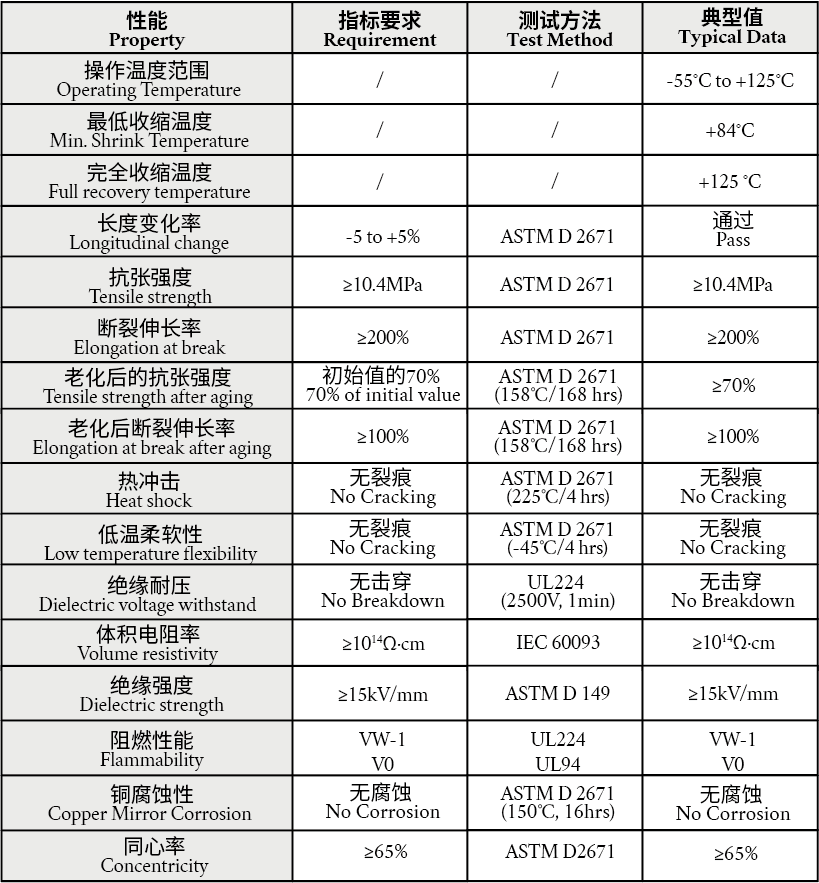

操作温度范围

/

/

-55°C to +125°C

最低收缩温度

/

/

+84℃

完全收缩温度

/

/

+125 °C

长度变化率

-5 to +5%

ASTM D 2671

通过

抗张强度

≥10.4MPa

ASTM D 2671

≥10.4MPa

断裂伸长率

≥200%

ASTM D 2671

≥200%

老化后的抗张强度

初始值的70%

ASTM D 2671  (158℃/168 hrs)

≥70%

老化后断裂伸长率

≥100%

ASTM D 2671  (158℃/168 hrs)

≥100%

热冲击

无裂痕

ASTM D 2671 (225℃/4 hrs)

无裂痕

低温柔软性

无裂痕

ASTM D 2671 (-45℃/4 hrs)

无裂痕

绝缘耐压

无击穿

UL224(2500V, 1min)

无击穿

体积电阻率

≥10¹⁴Ω·cm

IEC 60093

≥10¹⁴Ω·cm

绝缘强度

≥15kV/mm

ASTM D 149

≥15kV/mm

阻燃性能

VW-1 V0

UL224 UL94

VW-1 V0

铜腐蚀性

无腐蚀

ASTM D 2671 (150℃, 16hrs)

无腐蚀

同心率

≥65%

ASTM D2671

≥65%

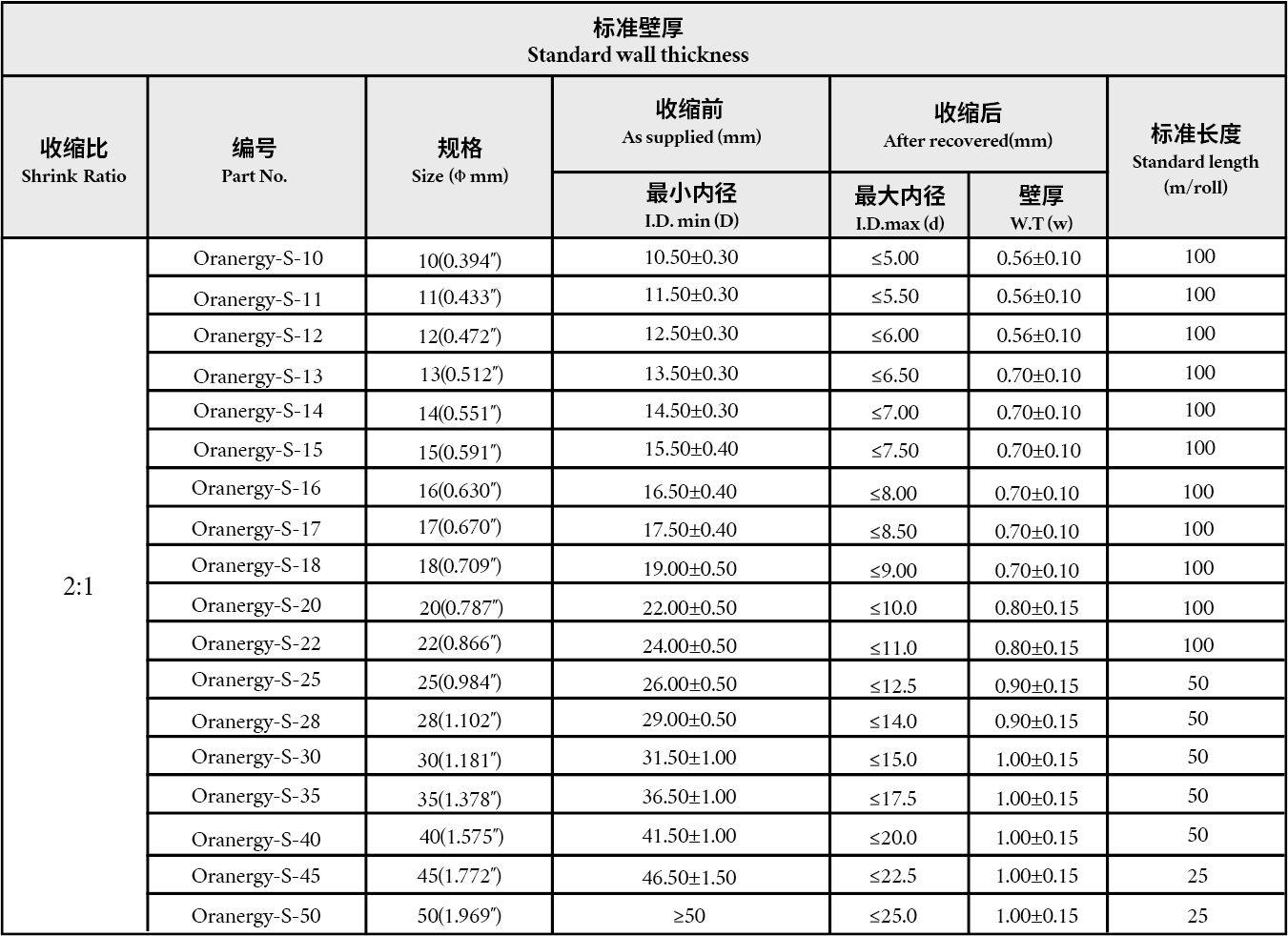

收缩比

编号

规格(Φ mm)

收缩前(mm)

收缩后(mm)

标准长度(m/roll)

最小内径

最大内径

2:1

Oranergy-S-10

10(0.394")

10.50±0.30

≤5.00

100

Oranergy-S-11

11(0.433")

11.50±0.30

≤5.50

100

Oranergy-S-12

12(0.472")

12.50±0.30

≤6.00

100

Oranergy-S-13

13(0.512")

13.50±0.30

≤6.50

100

Oranergy-S-14

14(0.551")

14.50±0.30

≤7.00

100

Oranergy-S-15

15(0.591")

15.50±0.40

≤7.50

100

Oranergy-S-16

16(0.630")

16.50±0.40

≤8.00

100

Oranergy-S-17

17(0.670")

17.50±0.40

≤8.50

100

Oranergy-S-18

18(0.709")

19.00±0.50

≤9.00

100

Oranergy-S-20

20(0.787")

22.00±0.50

≤10.0

100

Oranergy-S-22

22(0.866")

24.00±0.50

≤11.0

100

Oranergy-S-25

25(0.984")

26.00±0.50

≤12.5

50

Oranergy-S-28

28(1.102")

29.00±0.50

≤14.0

50

Oranergy-S-30

30(1.181")

31.50±1.00

≤15.0

50

Oranergy-S-35

35(1.378")

36.50±1.00

≤17.5

50

Oranergy-S-40

40(1.575")

41.50±1.00

≤20.0

50

Oranergy-S-45

45(1.772")

46.50±1.50

≤22.5

25

Oranergy-S-50

50(1.969")

≥50

≤25.0

25
